Info product

Advanced UV Systems ULTRALOW ULU™ Series

PRODUCT DESCRIPTION

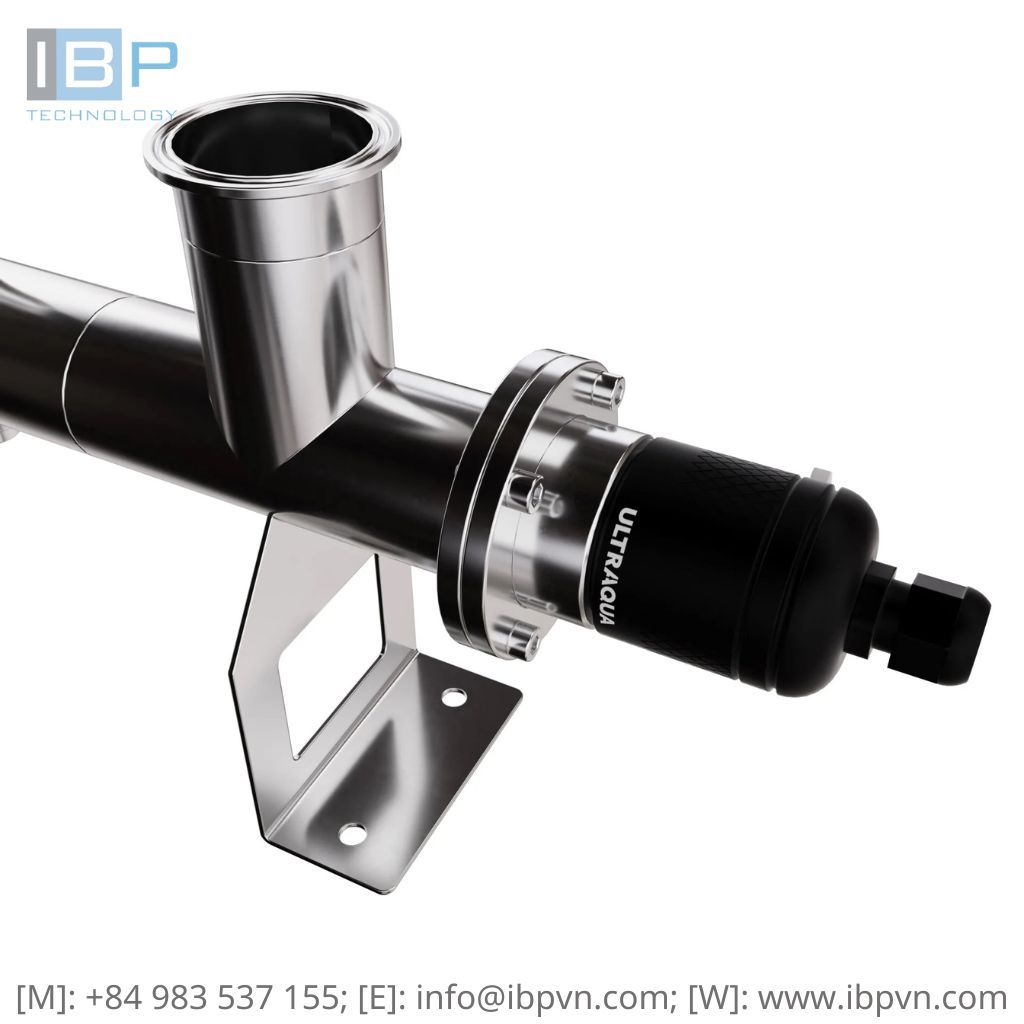

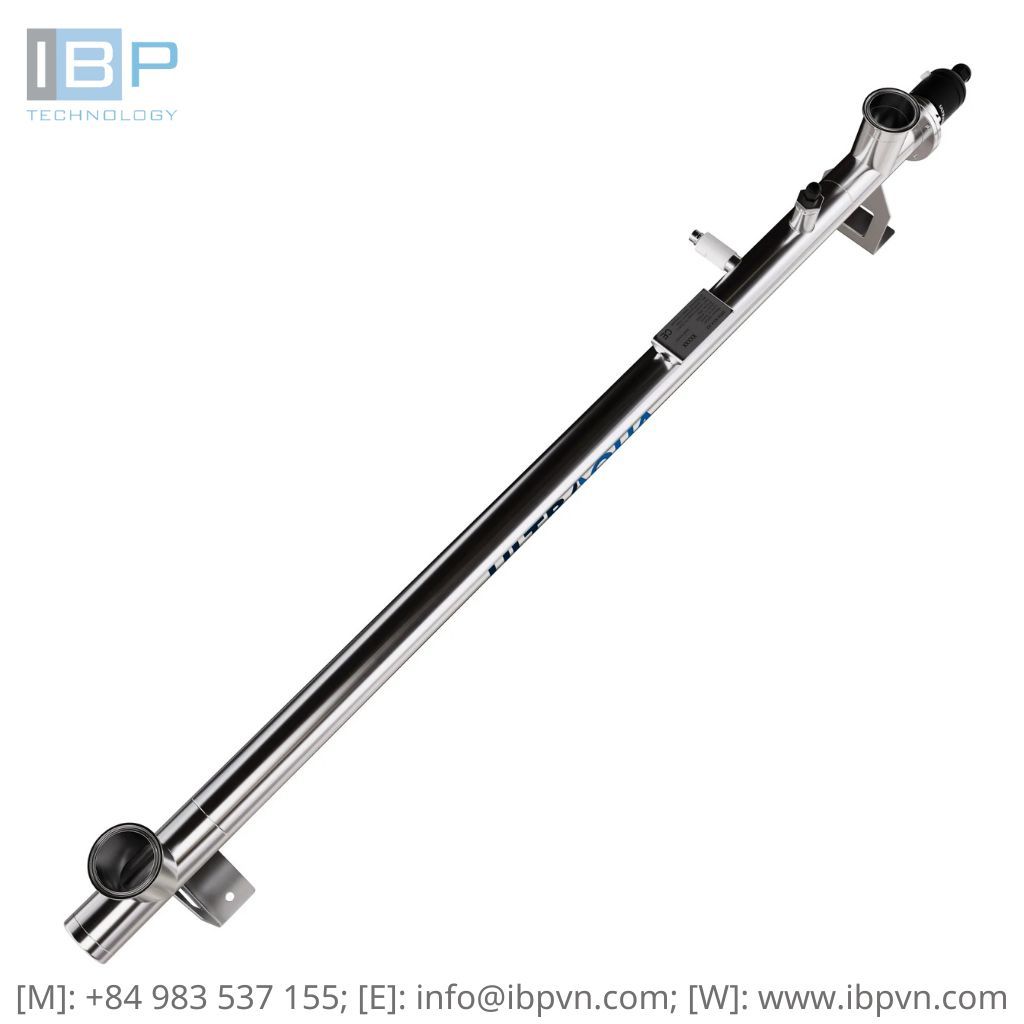

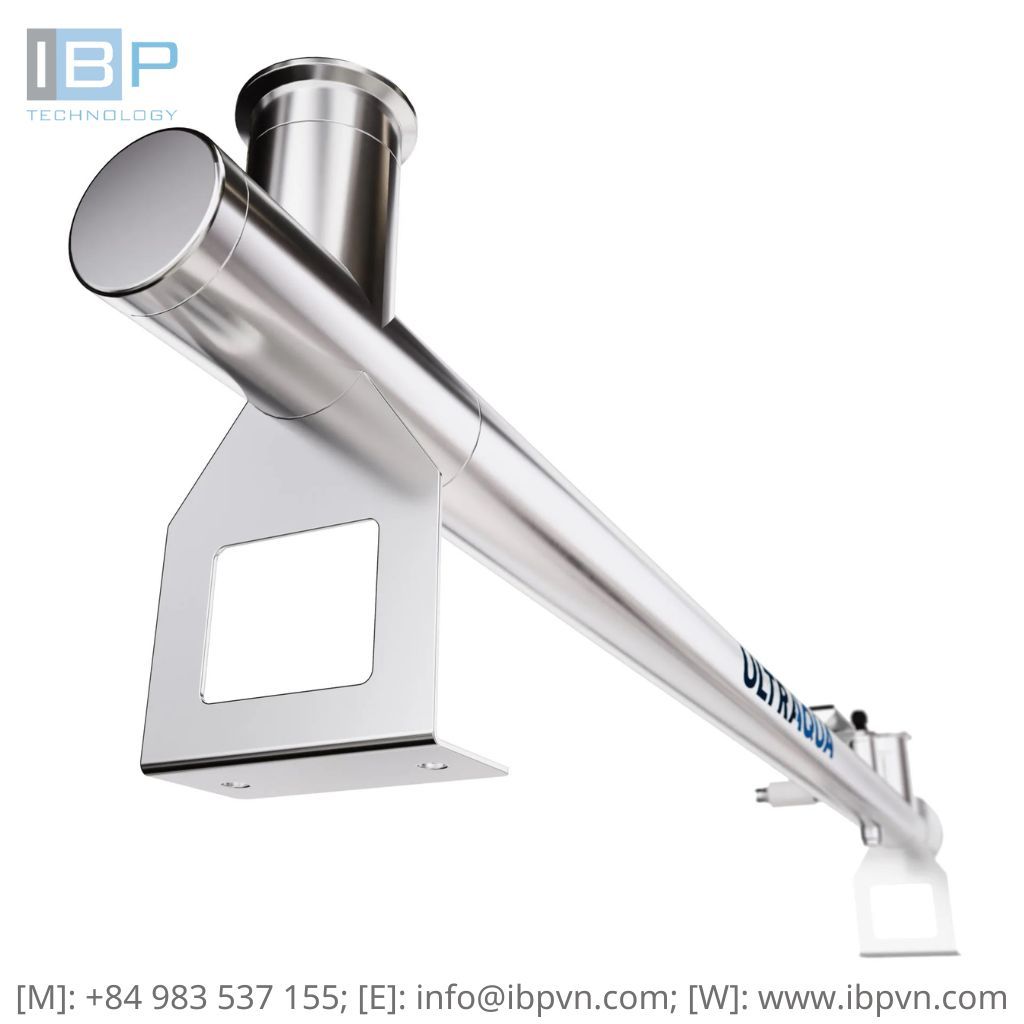

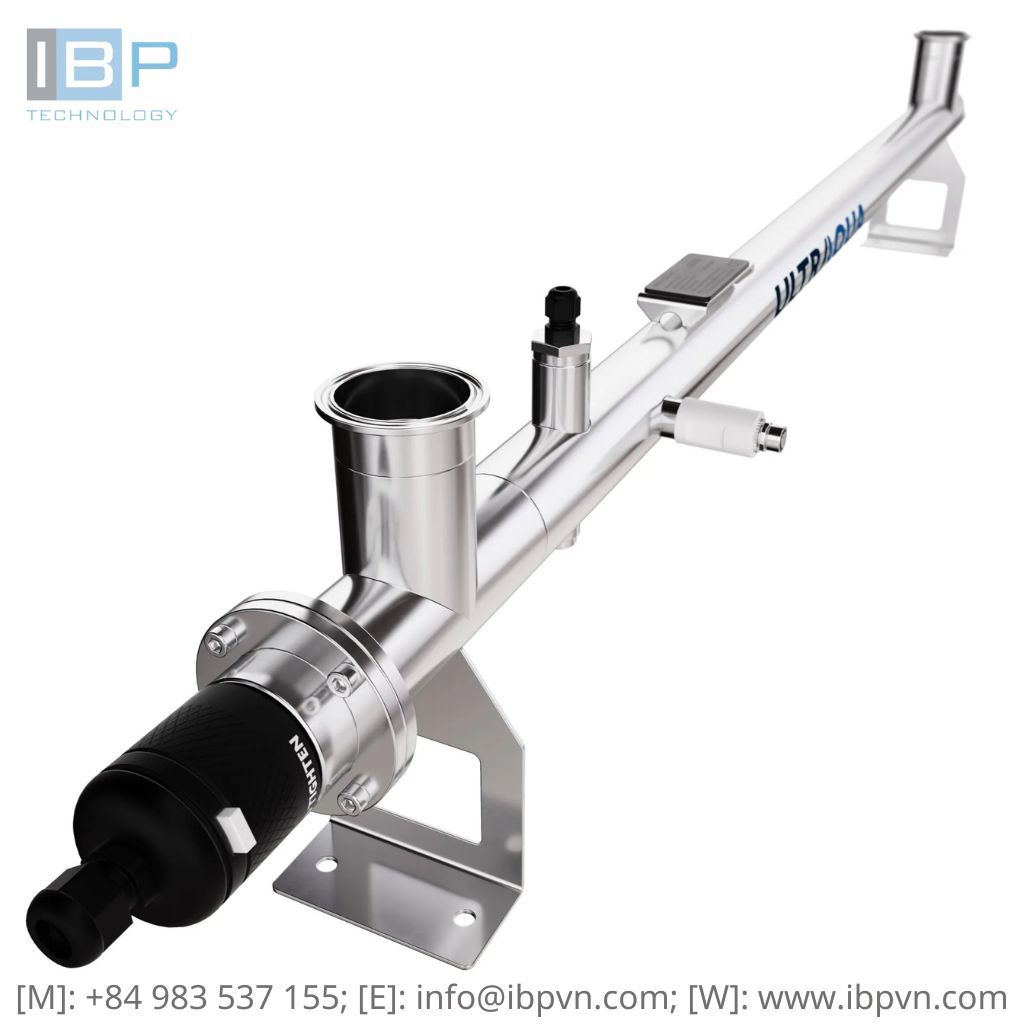

ULTRALOW ULU™ UV SYSTEMS

The Ultralow ULU™ series is developed specifically for applications with extremely low UV transmission (UVT) from >2%. This makes it excellent for UV disinfection of fluids such as liquid sugar, wine, salt brines, etc. Standard UV systems are not able to effectively eliminate pathogenic microorganisms found in these types of fluids due to the low transmission of UV light.

The small distance between the reactor walls and the quartz sleeve ensures an evenly distributed UV light exposure to guarantee hydraulic optimization and even dose distribution. The ULU™ series ingenuity is its modular design, which makes it possible to connect as many ULU™ UV reactors as required – either 2 or 20 – to deliver high-purity water for applications such as food & beverage and pharmaceutical industries.

Additionally, the ULU™ series can be equipped with either LPHO ULTRATHERM™ UV lamps for standard disinfection, or 185nm vacuum UV lamps for photolysis, used for TOC reduction and other micropollutants.

KEY HIGHLIGHTS

• CFD optimized for hydraulic efficiency with minimum head loss and an even UV dose distribution
• Compact design with low energy consumption
• Hygienic design for the food & beverage industry – Standard surface finish Ra 25
• High level of customization – modular design and control system
• High-grade electropolished stainless steel AISI 316L construction – Up to 30% energy savings with internal reflection
• Guaranteed 16 000-hour ULTRATHERM™ lamp lifetime.
