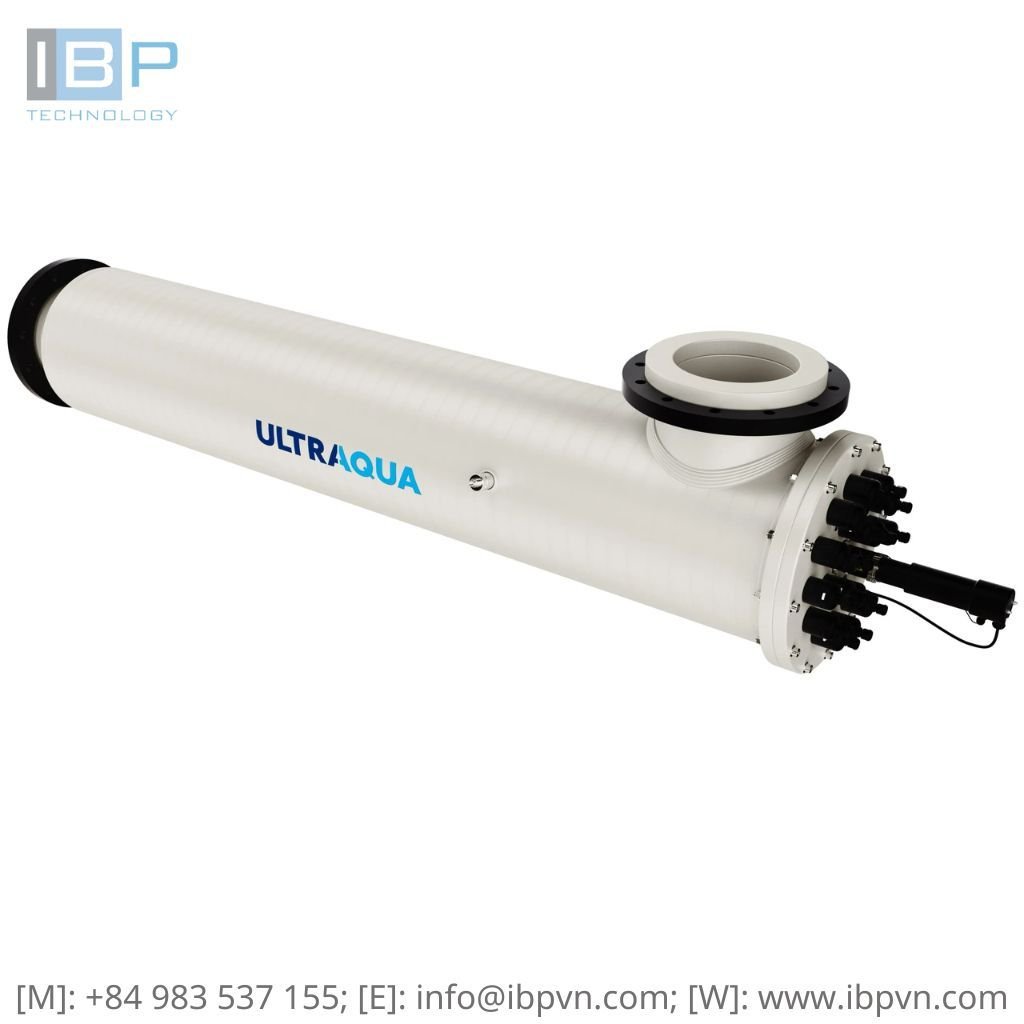

Closed Vessel UV Systems ULTRABARRIER™ PP Series
PRODUCT DESCRIPTION
ULTRABARRIER™ PP INTAKE WATER DISINFECTION SYSTEMS
The ACN ULTRABARRIER™ Non-Corrosive PP series is designed specifically for intake water disinfection for rearing and sustaining warm saline water species in the aquaculture industry, to recreate the natural environment of the selected species. The series ensures that no harmful microorganisms enter the production to potentially compromise the livelihood and quality of the species.
The PP material makes the ULTRABARRIER™ series capable of withstanding even the most saline water environments. The CFD optimized reactor chambers provide an even UV dose distribution with minimum head loss, combined with a double UV intensity monitoring system to ensure operational efficiency against pathogens such as IPNV, CSV and Costia Necatrix.
The ACN ULTRABARRIER™ series has been validated and approved by the Norwegian Veterinary Institute (NVI) for intake water disinfection in the Norwegian aquaculture industry.
KEY HIGHLIGHTS
- Recognized intake water disinfection solution – validated and approved by the Norwegian Veterinary Institute
- Non-corrosive Polypropylene material for exceptional durability in warm saline water environments
- Two DVGW/ÖNORM certified duplex UV sensors for advanced UV dose pacing
- Easy SCADA integration – Connection via ethernet MODBUS TCP/IP, PROFIBUS, PROFINET
- Easy maintenance – Quartz sleeve and UV lamp replacements without the need for any tools.
System Characteristics Closed Vessel UV Systems ULTRABARRIER™ PP | |
| Reactor configuration | U, L and Z-shape |
| Material | UV stabilized Polypropylene (PP) |
| Inlet/outlet connection | DN100 (3”) – DN500 (20”) DIN, ANSI, JIS |
| Pressure rating | Max. 10 bar |
| Flowrates | 5 m3/h (22 GPM) – 3000 m3/h (19 MGD) |
| UV transmission (UVT%) | 50 – 100% |

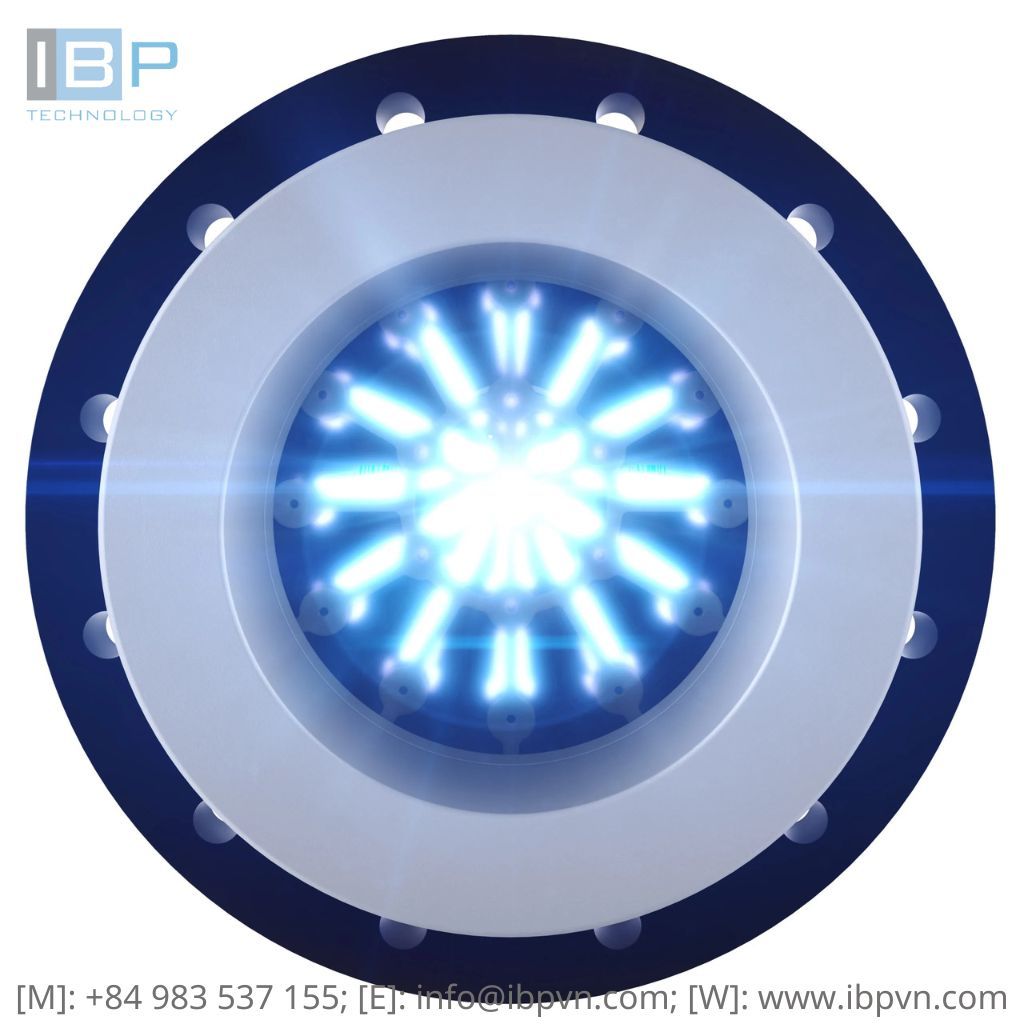

| Lamp type | ULTRATHERM™ Low-pressure High Output (LPHO) |
| Lamp lifetime | Guaranteed 16 000 hours |
| Control cabinet characteristics | |
| Enclosure material | Painted steel, SS304, SS316L, GFRP |

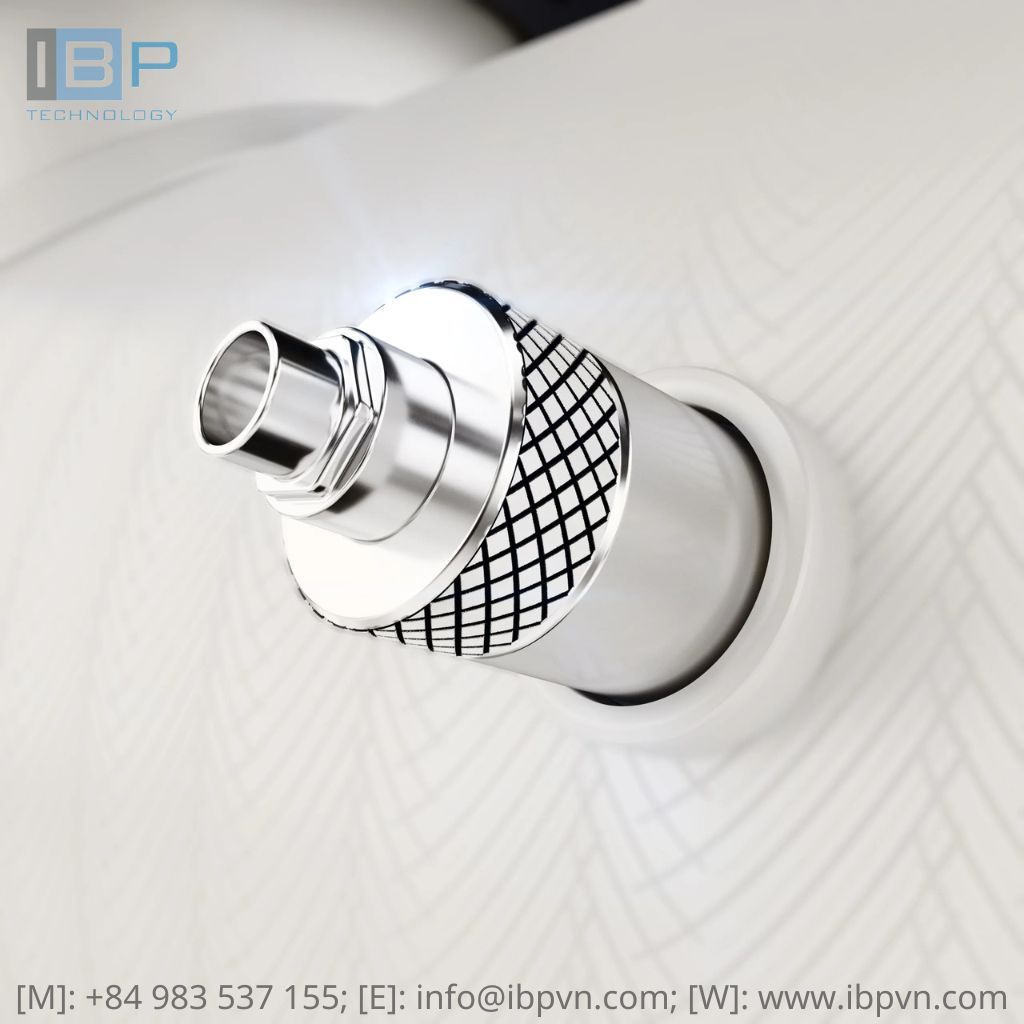

| UV intensity sensor | 2x UV Intensity Sensor ÖNORM M5873 Certified Super Duplex |
| Sleeve wiping | Manual, automatic ULTRAWIPER™ |
| SCADA connection | Profibus, Profinet, MODBUS TCP/IP |
| Enclosure rating | IP54, IP65 |
| Lamp driver type | Electronic variable output |
| System voltage | 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional) |
| UV dose pacing | Optional |
