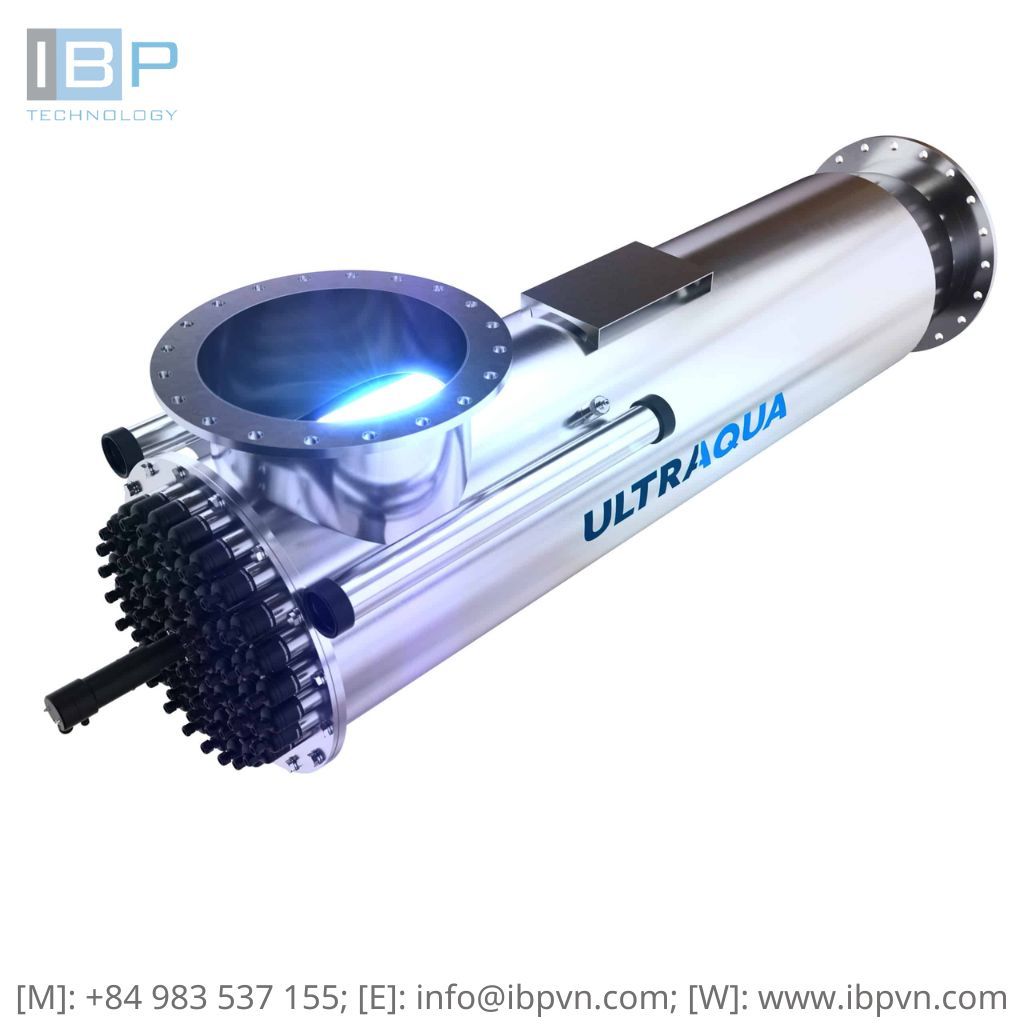

Closed Vessel UV Systems ULTRABARRIER™ SS Series
PRODUCT DESCRIPTION
ULTRABARRIER™ INTAKE WATER UV SYSTEMS
The ACN ULTRABARRIER™ series is developed specifically for intake water UV disinfection in the aquaculture industry. The ULTRABARRIER™ creates a ‘firewall’ that ensures no harmful microorganisms enter the production to potentially compromise the livelihood and quality of the species.

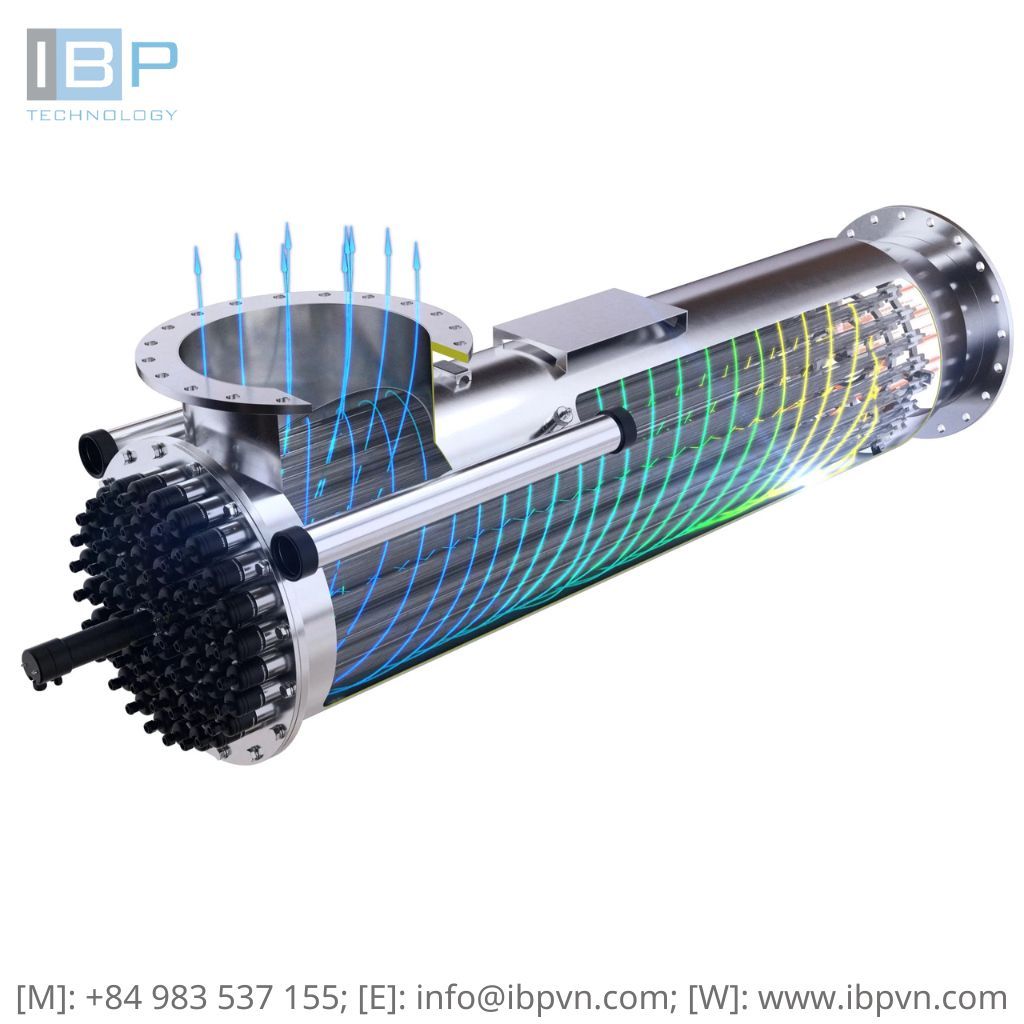

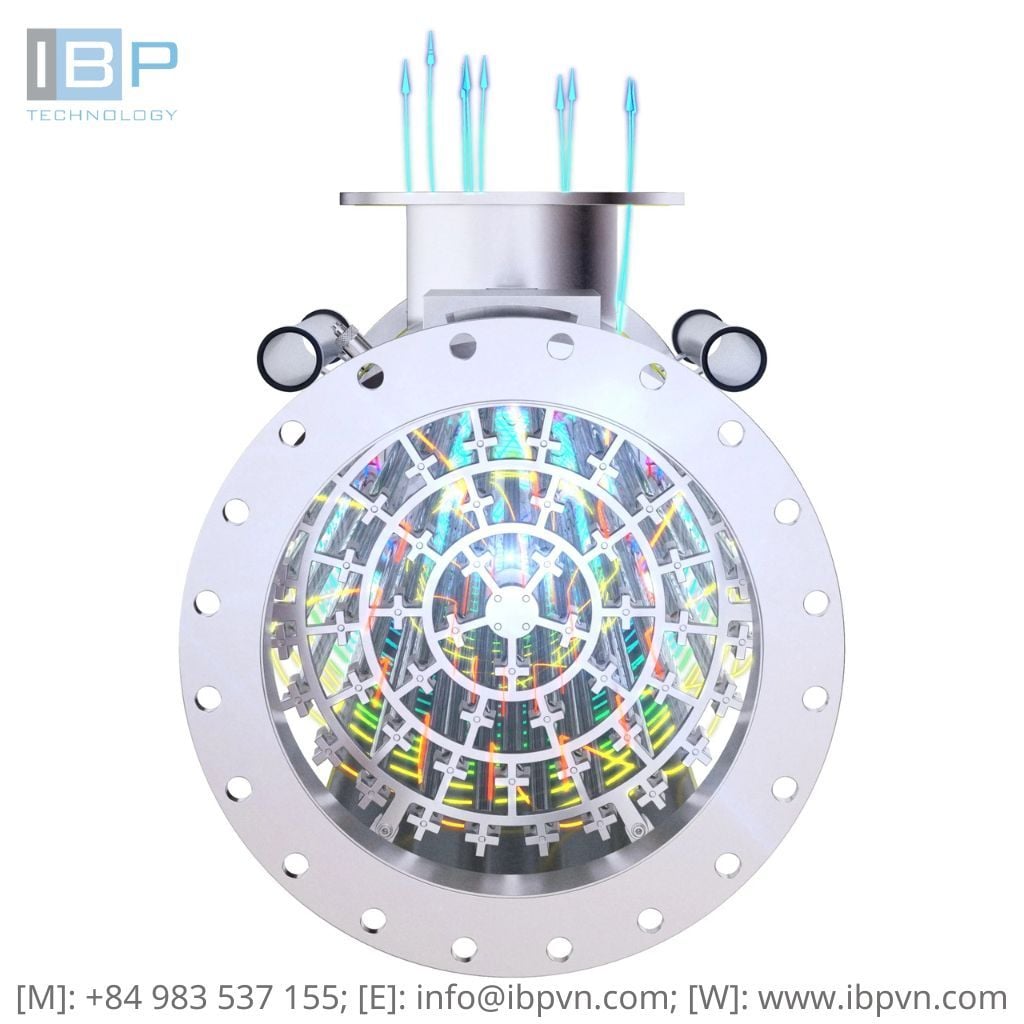

CFD optimized reactor chambers provide an even UV dose distribution with minimum head loss, combined with a double UV intensity monitoring system to ensure operational efficiency.
The ACN ULTRABARRIER™ series has been validated and approved by the Norwegian Veterinary Institute (NVI) for intake water disinfection in the Norwegian aquaculture industry.
KEY HIGHLIGHTS
- Recognized intake water disinfection solution – validated and approved by the Norwegian Veterinary Institute
- Optimal for low UVT freshwater containing humic substances
- Two DVGW/ÖNORM certified duplex UV sensors for advanced UV dose pacing

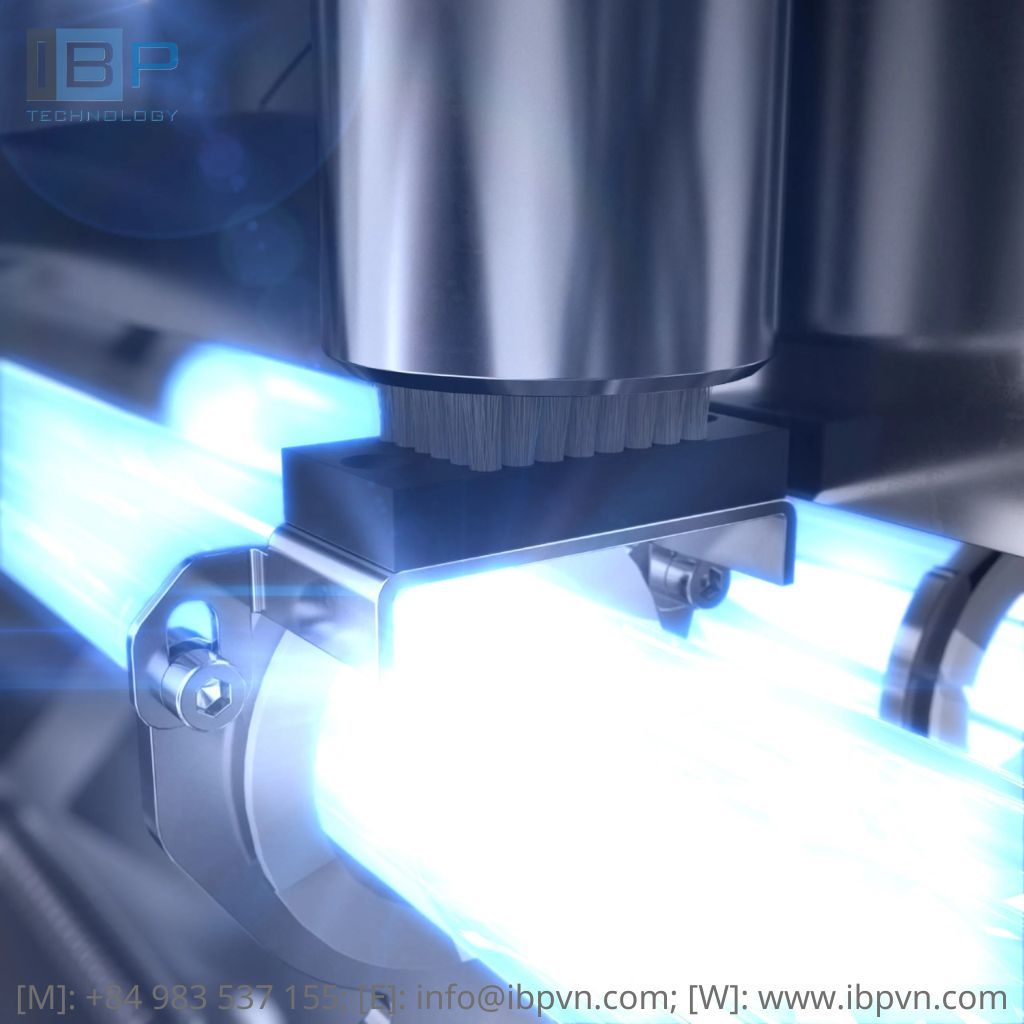

- Automated ULTRAWIPER™ quartz sleeve wiping technology – Stable disinfection process
- Guaranteed 16 000-hour ULTRATHERM™ lamp lifetime
- High-grade electropolished stainless steel AISI 316L construction – Up to 30% energy savings with internal reflection
- Complete control with the customizable ULTRATOUCH™ control cabinets
System Characteristics Closed Vessel UV Systems ULTRABARRIER™ SS | |
| Reactor configuration | L-shape |
| Material | Electropolished SS 316L, Super duplex |
| Inlet/outlet connection | DN100 (3”) – DN500 (20”) DIN, ANSI, JIS |
| Pressure rating | Max. 10 bar |
| Flowrates | 5 m3/h (22 GPM) – 3000 m3/h (19 MGD) |
| UV transmission (UVT%) | 50 – 100% |
| Lamp type | ULTRATHERM™ Low-pressure High Output (LPHO) |
| Lamp lifetime | Guaranteed 16 000 hours |
| Control cabinet characteristics | |
| Enclosure material | Painted steel, SS304, SS316L, GFRP |
| UV intensity sensor | 2x UV Intensity Sensor ÖNORM M5873 Certified Super Duplex |
| Sleeve wiping | Manual, automatic ULTRAWIPER™ |
| SCADA connection | Profibus, Profinet, MODBUS TCP/IP |
| Enclosure rating | IP54, IP65 |
| Lamp driver type | Electronic variable output |
| System voltage | 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional) |
| UV dose pacing | Optional |
