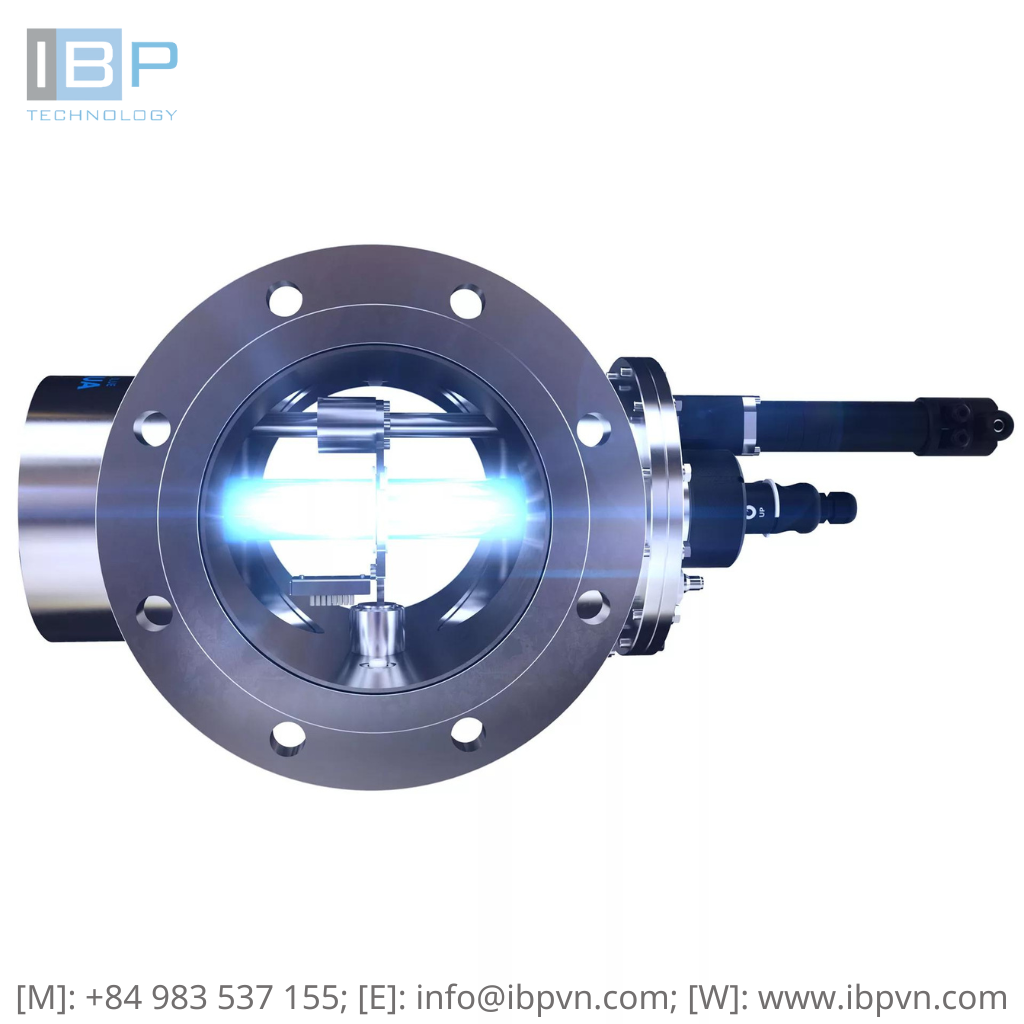

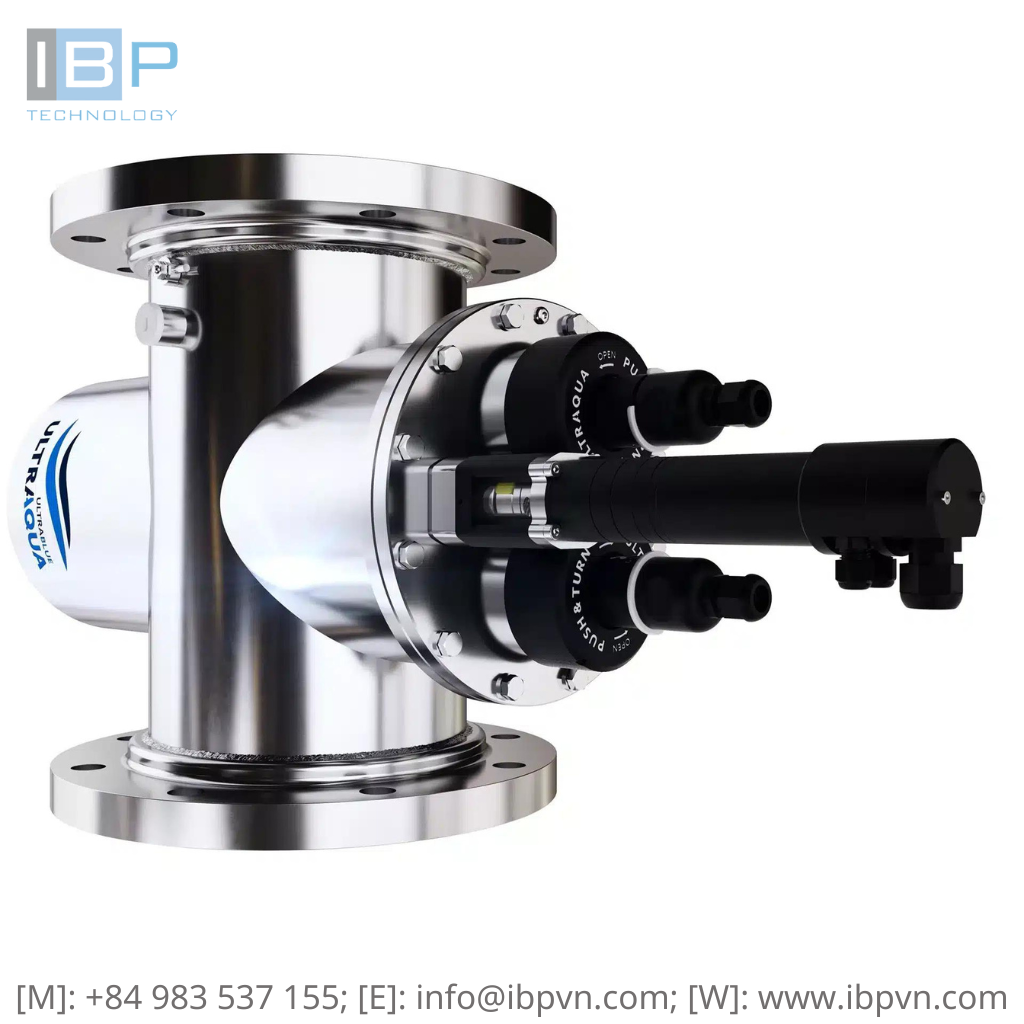

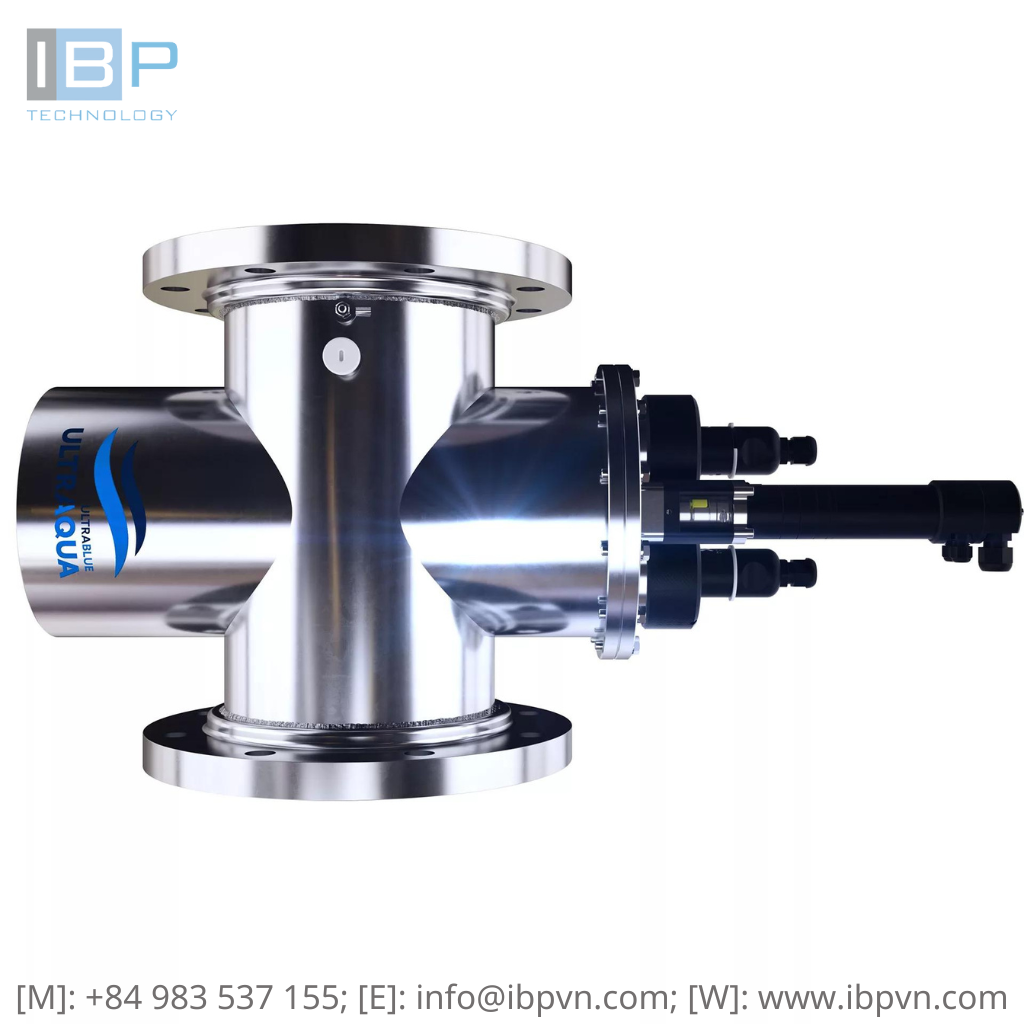

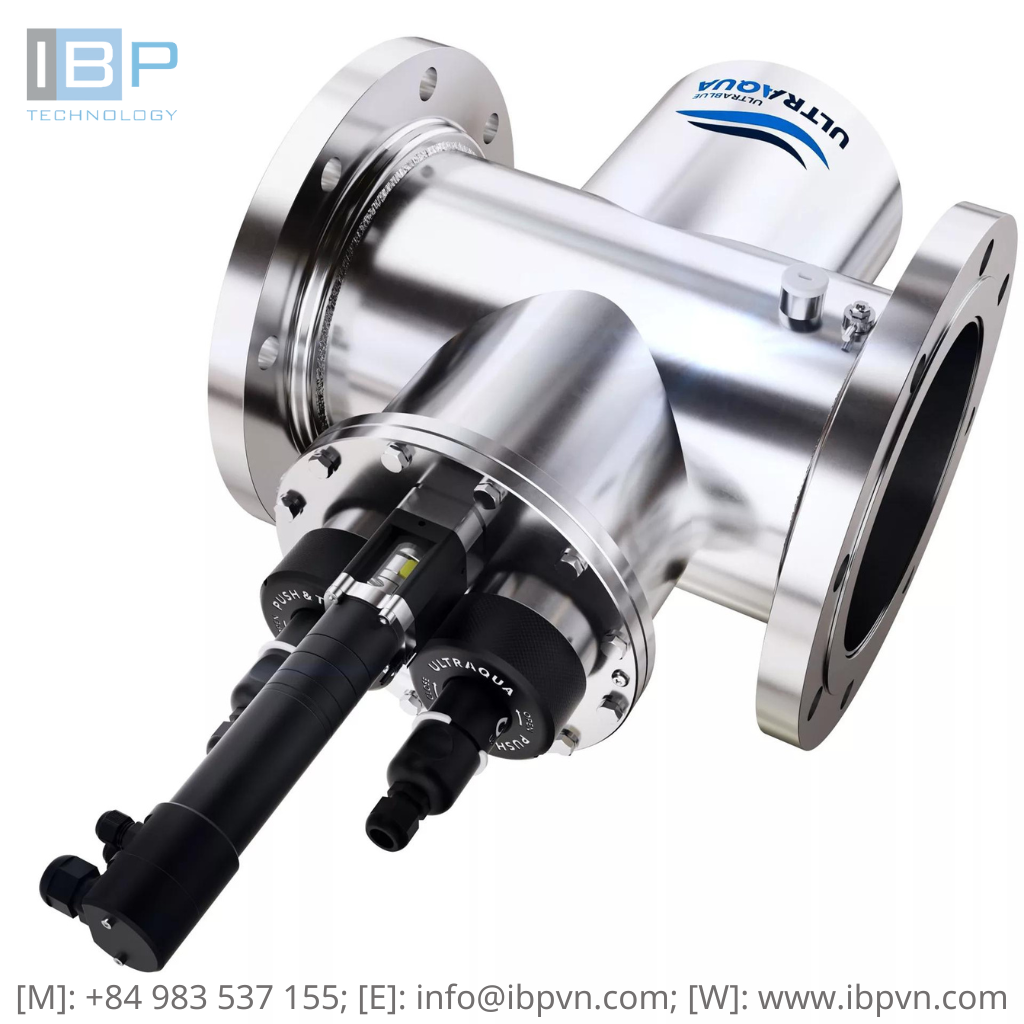

Medium Pressure UV Systems ULTRABLUE™ Series

PRODUCT DESCRIPTION

ULTRABLUE™ UV SYSTEMS

The ULTRABLUE™ swimming pool UV system is the result of extensive scientific research and R&D activities, aimed at optimizing disinfection, reducing chloramines, and ensuring crypto/giardia safety in swimming pools. The system effectively lowers combined chlorine levels, improves air quality, and provides healthier water for swimmers.

Over the past decade, research has revealed that most measured combined chlorine levels in swimming pools are made up of organic chloramine compounds. With its pool-optimized medium-pressure lamp technology, the ULTRABLUE™ ensures a low level of organic combined chlorine through continuous photolysis.

To minimize operating costs, the ULTRABLUE™ features reactor geometries and electronic control systems that have been designed with large, flanged connections and body geometry resulting in minimal head loss even at high flow rates. Its intelligent PLC control enables automatic operational efficiency through lamp dimming based on combined chlorine sensing, time of day/week timers, flow, or via the UV sensor. This allows the system to be dimmed and operated based on a number of different intelligent, user-selectable set points in real-time to save energy. Additionally, during opening hours, it can be set to maintain a minimum UV dose to provide a barrier for crypto and giardia.

KEY HIGHLIGHTS

• Say goodbye to chloramines: Continuous photolysis technology helps ensure a low level of organic combined chlorine, improving air quality and ensuring healthier water
• Smarter energy use: Intelligent PLC control allowing automatic lamp dimming (20%-100%) based on various factors, saving energy and money without compromising the performance
• Optimized for performance: Optimized connection sizes help reduce head loss, while the medium-pressure lamp technology ensures maximum efficiency and effectiveness.
• Built to last: The high-grade electropolished stainless steel AISI 316L construction and a guaranteed lamp life of 9000 hours ensures the highest durability with minimal downtime
• Advanced super duplex materials in typical high corrosion areas such as the UV sensor housing
• Complete control at your fingertips: Our customizable ULTRATOUCH™ control cabinets come with a range of features to ensure complete integration into your existing plant room.
• Not only does the system come with an automatic wiper included – it also utilizes an automatic wiper with a variable brush head for the UV sensor window
• Safety and peace of mind: Our product’s advanced safety features make lamp installation and servicing easy and safe, while dual temperature sensor control provides added protection for your pool and your investment.
