Open Channel UV Systems Inclined SS Series
PRODUCT DESCRIPTION

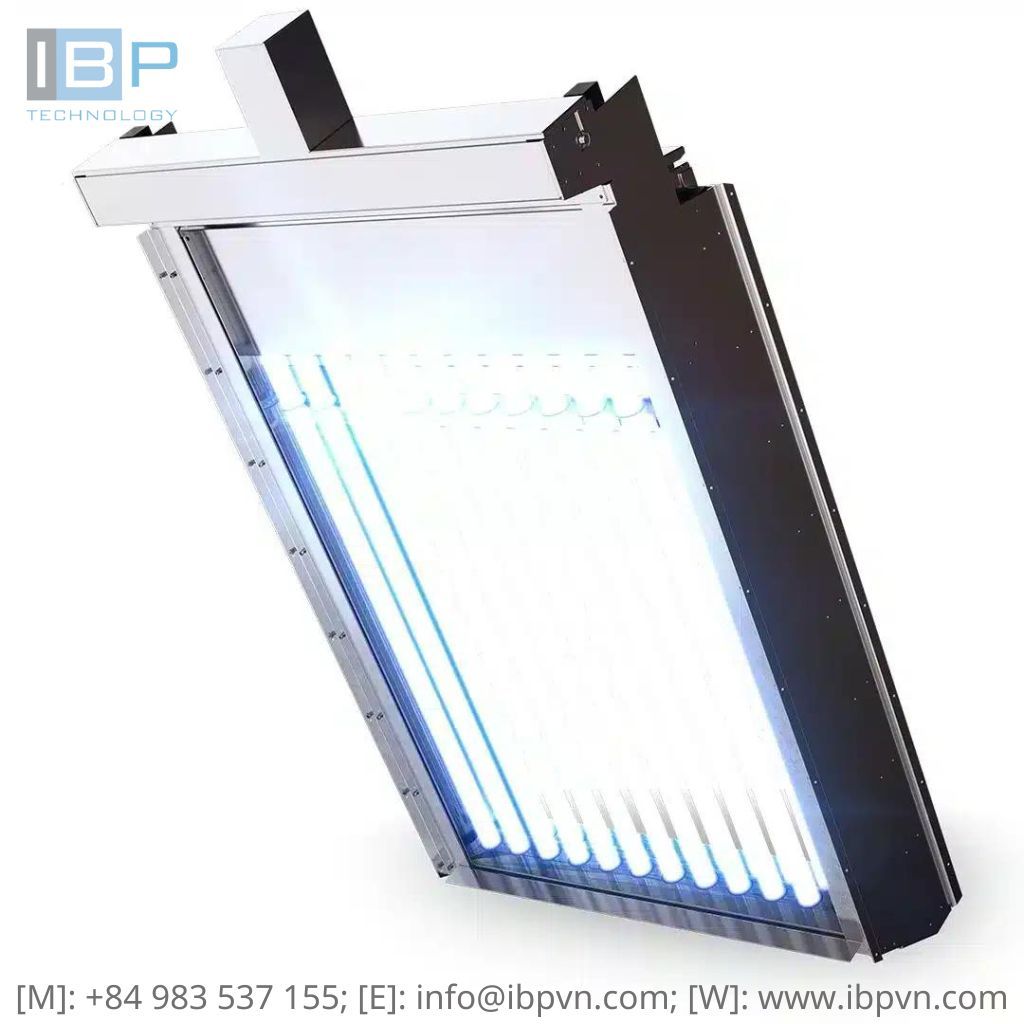

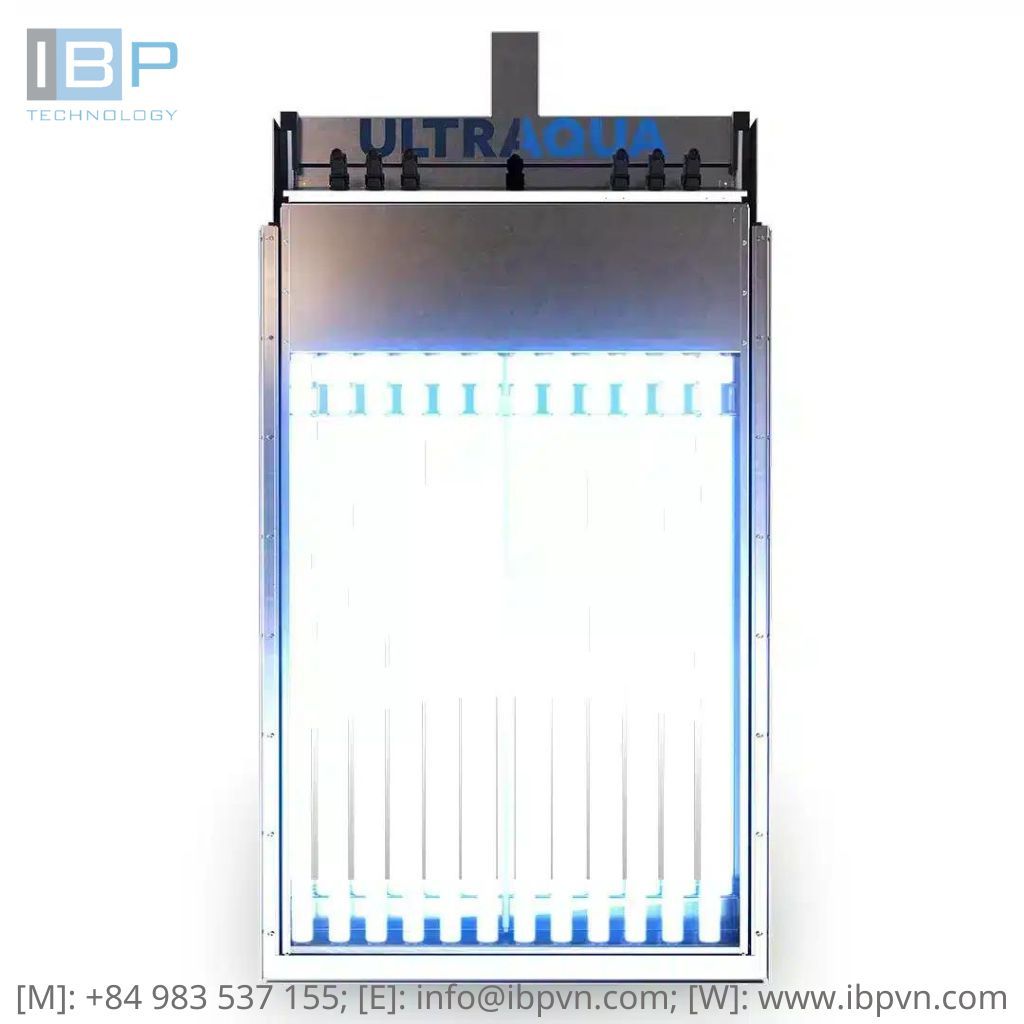

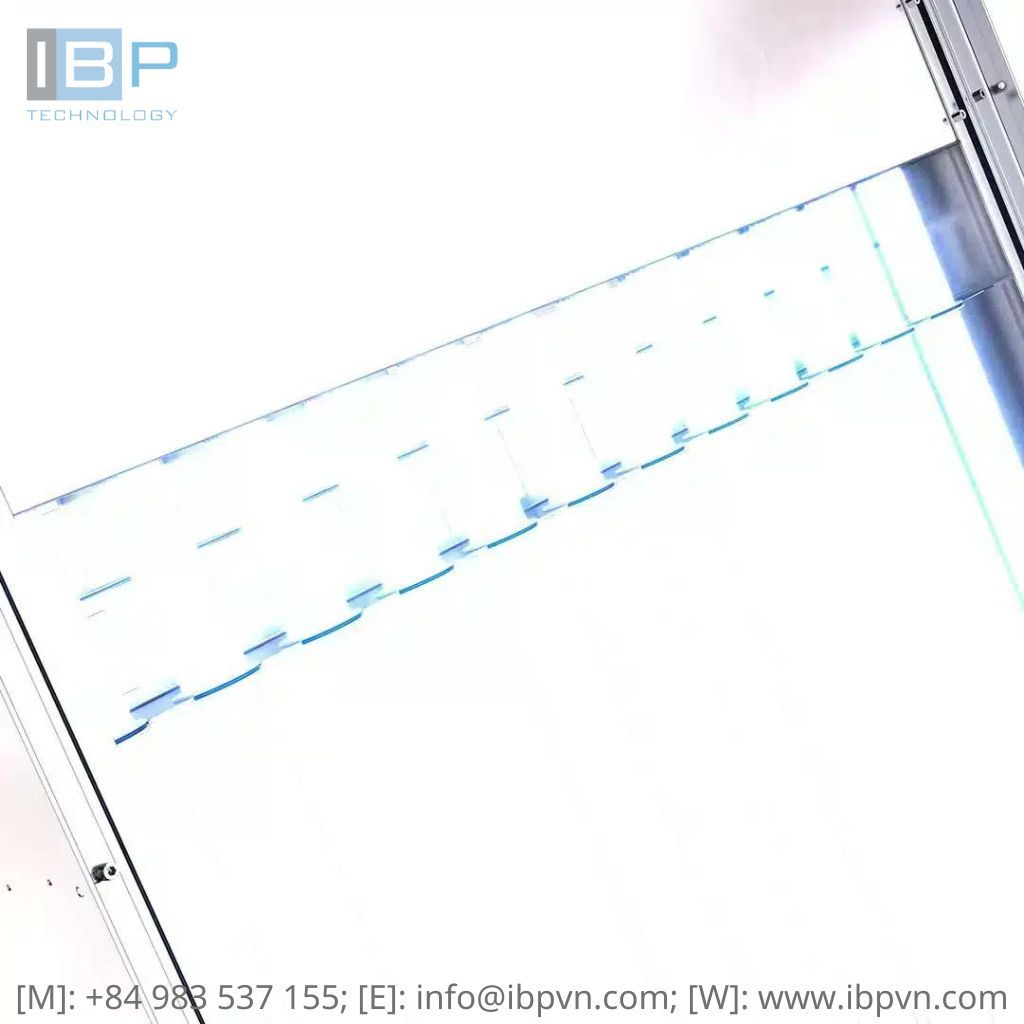

INCLINED OPEN CHANNEL UV DISINFECTION SYSTEMS
The Inclined Open Channel SS series offers safe, chemical-free disinfection for municipal and industrial wastewater disinfection, being third-party validated in compliance with USEPA & NWRI.
In 2001, the Inclined Open Channel series was engineered due to the industry’s dire need for a higher range of water level installations within municipal and industrial effluent applications. Since then, the design has been continuously optimized, with the latest lamp bank design offering up to 30% more depth options.
The excellent construction versatility offers excellent installation conditions and retrofitting in various channel depths and widths, able for replacing older systems, integration into chlorine contact tanks, or other water treatment infrastructures.

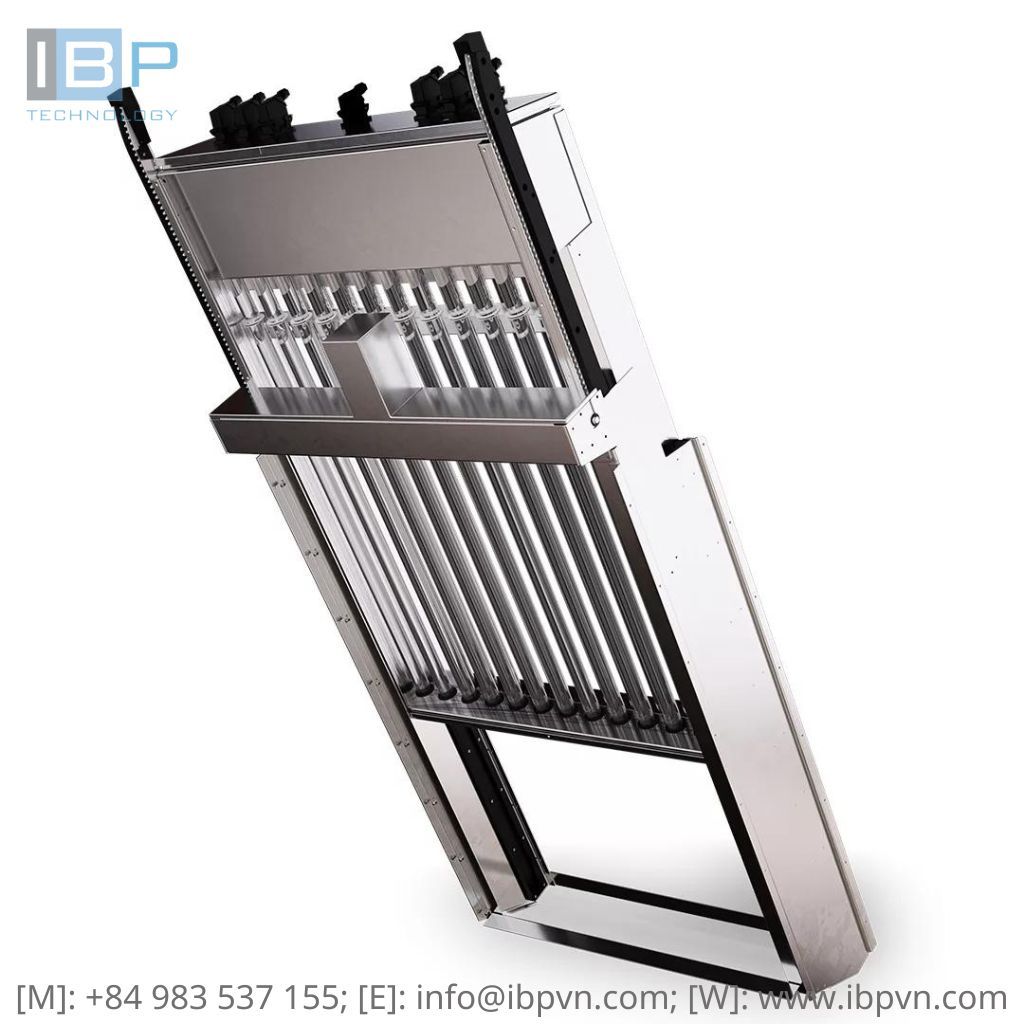

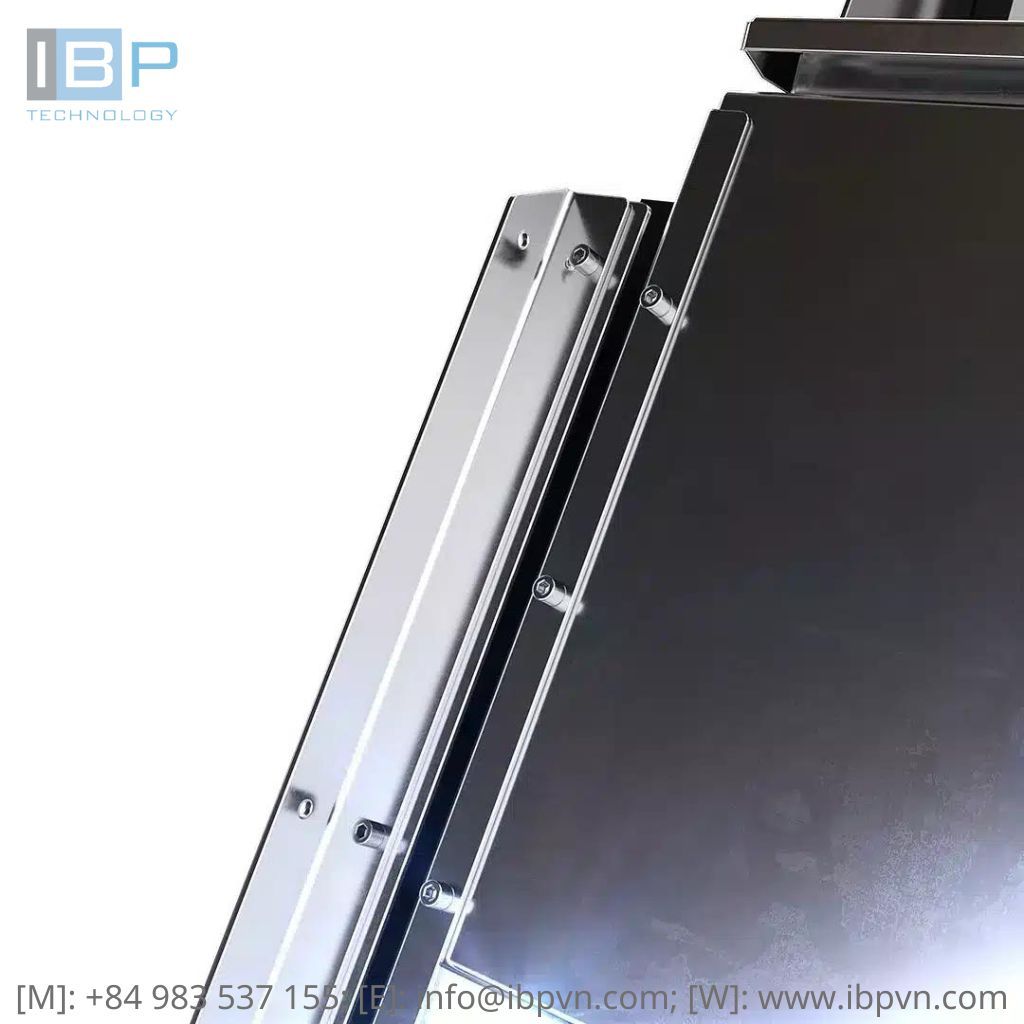

The series features a sealed top compartment where the lamps, quartz sleeves, wiping motor, and UV sensors are easily accessed. This allows for quick, easy, and hygienic maintenance procedures without needing to remove the channel system from the rack. Additionally, the automated ULTRAWIPER™ technology ensures clean quartz sleeves with tailored brush heads for operational efficiency. The open channel system is also available in a vertical series.
KEY HIGHLIGHTS
- Third-party validated disinfection performance in compliance with USEPA & NWRI
- Powerful 1000-series Low-Pressure High-Output ULTRATHERM™ UV lamps for maximum efficiency
- Consistent performance through automated ULTRAWIPER™ quartz sleeve wiping technology
- Easy maintenance through integrated lifting mechanism and easy top-compartment access
- Water level variation up to 12” without compromising water disinfection performance
- Maximized design versatility – customizable for virtually any channel dimension
System Characteristics Open Channel UV Systems Inclined SS | |
Lamp configuration | Inclined |
Material | Electropolished SS 316L, Super duplex |
Configuration | Modular |
Pressure rating | Gravitational |
Flowrates | 5 m3/h (22 GPM) – 16 000 m3/h (100 MGD) |
UV transmission (UVT%) | 20 – 100% |
Lamp type | ULTRATHERM™ Low-pressure High Output (LPHO) |
Lamp lifetime | Guaranteed 16 000 hours |
Integrated Lifting Mechanism | Included |
Control cabinet characteristics | |
Enclosure material | Painted steel, SS304, SS316L, GFRP |
UV intensity sensor | Calibrated 90 Degree Side Looking Sensor |
Sleeve wiping | Automatic ULTRAWIPER™ |
SCADA connection | Profibus, Profinet, MODBUS TCP/IP |
Enclosure rating | IP54, IP65 |
Lamp driver type | Electronic variable output |
System voltage | 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional) |
UV dose pacing | Standard |
