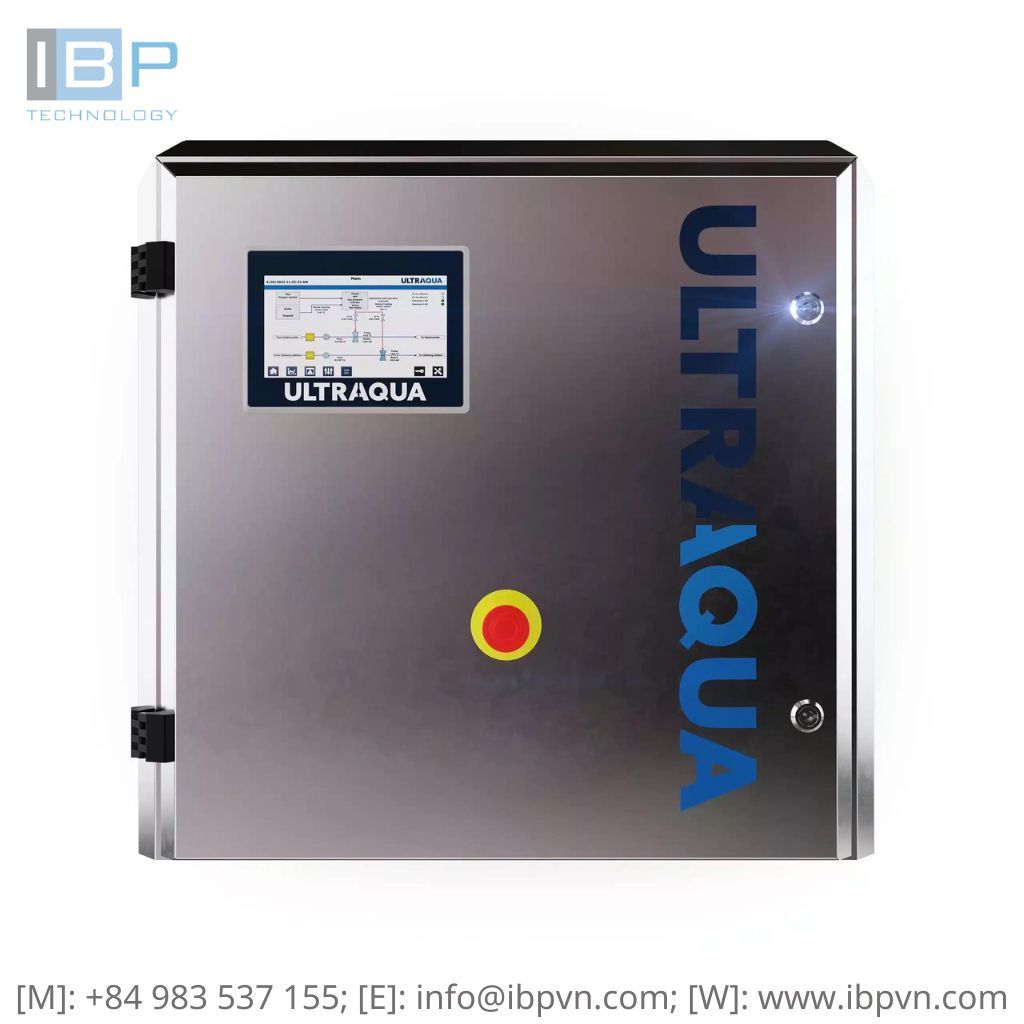

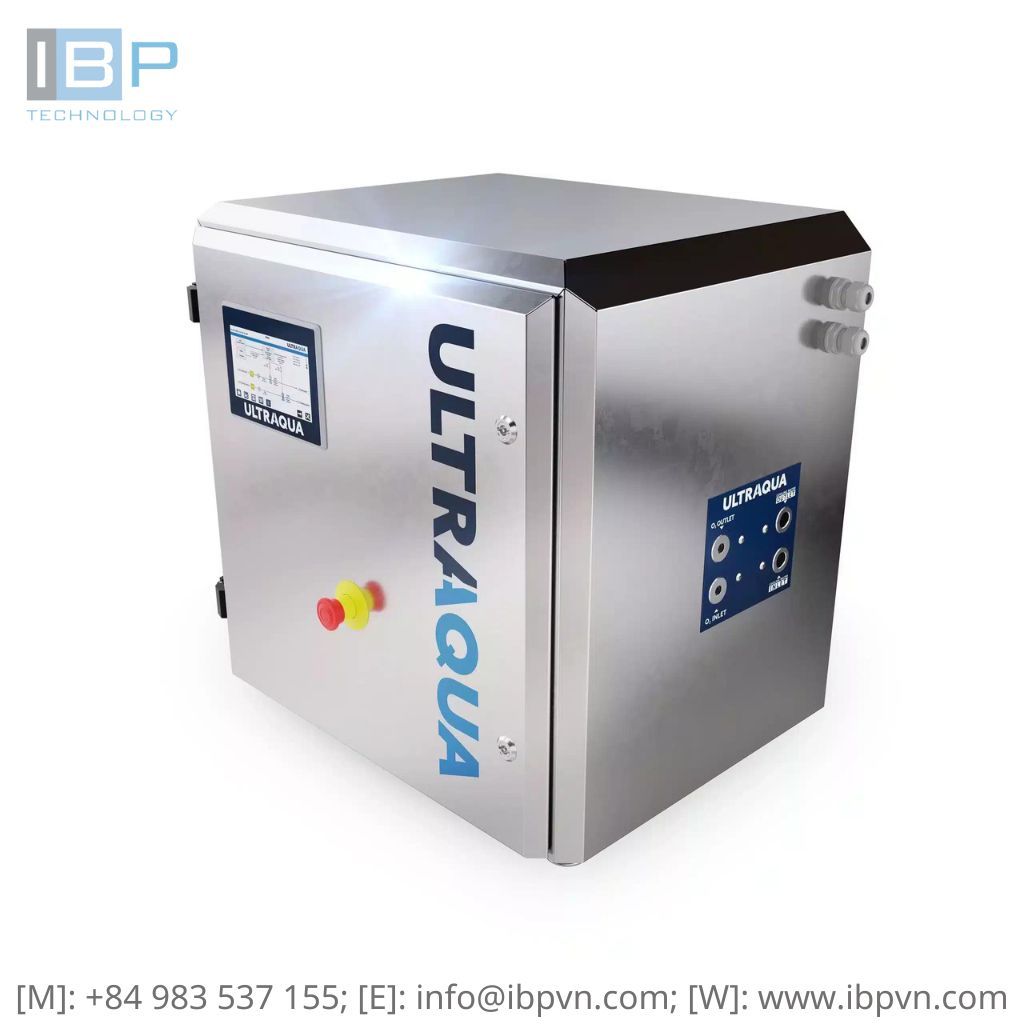

Ozone Systems ULTRAQUBE™ SS (1-5) Series
PRODUCT DESCRIPTION
ULTRAQUBE™ SS (1-5) OZONE SYSTEMS
The ULTRAQUBE™ features energy-efficient high-concentration ozone technology, designed as a scalable concept that fits customization over time to suit the exact requirements.
The ULTRAQUBE™ is scalable with an integrated inverter that produces 88 grams of ozone per hour. If the demand increases, additional modules can be integrated to meet the requirements.
The high component quality ensures robustness and durability to stand the test of time, as well as offering compactness for easy integration in all kinds of environments.
With the proper installation conditions, ozone disinfection leaves no chemical residue as it decomposes back into oxygen. This allows facilities worldwide to reduce their dependency on chemical treatment, leading to both environmental benefits and potential cost savings.
KEY HIGHLIGHTS
- Robust design tailored for industrial applications
- Scalable concept for trouble-free customization of ozone demand
- 9-20 wt% ozone concentration
- Full ozone system with value added products
- Robust and compact unit for easy integration in complex environments
- Safe, sustainable, and chemical-free technology
| Performance, Gas & Cooling | |
| Capacity* | 88 g/h - 440 g/h |
| Ozone Concentration** | 140-300 gr/Nm3 |
| Control Range | 20-100% |
| Energy Consumption | 8,5 kW/kg O3 |
| Gas Pressure*** | 1.0-3.0 barg |
| Oxygen Purity | >92% |
| Oxygen Dew Point | <-40°C / <-40°F |
| Cooling Water Temp | 2-30°C |
| Max Cooling Water Pressure | 7 barg |
| Enclosure & Controller | |
| Ambient Temperature Range | 5-40°C |
| IP-Class | IP65 |
| Control System | Beijer XPS / Siemens |
| External Com Port | Modbus TCP |

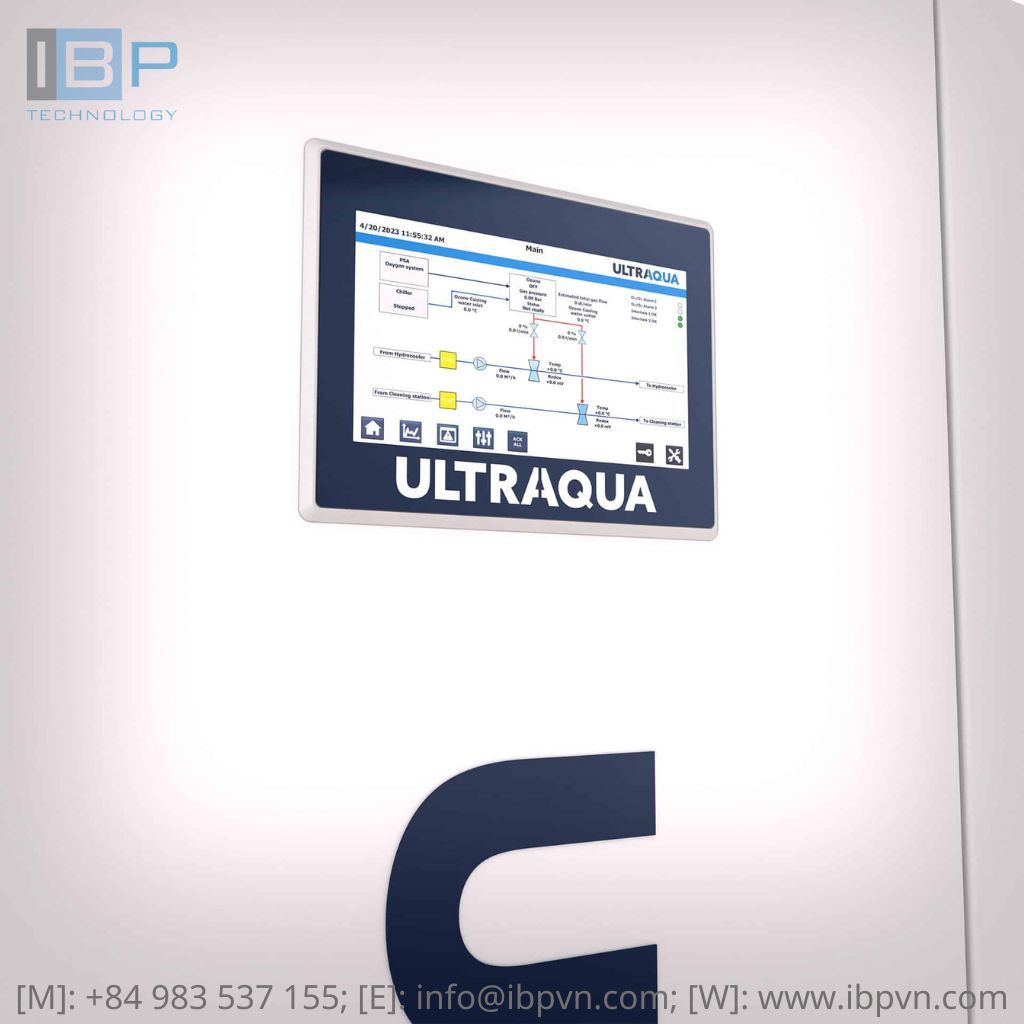

| HMI | 7” Touch |
** Standard version (High performance version 200-400 gr/Nm3 (13.4-25.0 wt%)
*** Standard version (High pressure version up to 4,5 barg (up to 72 PSI)
